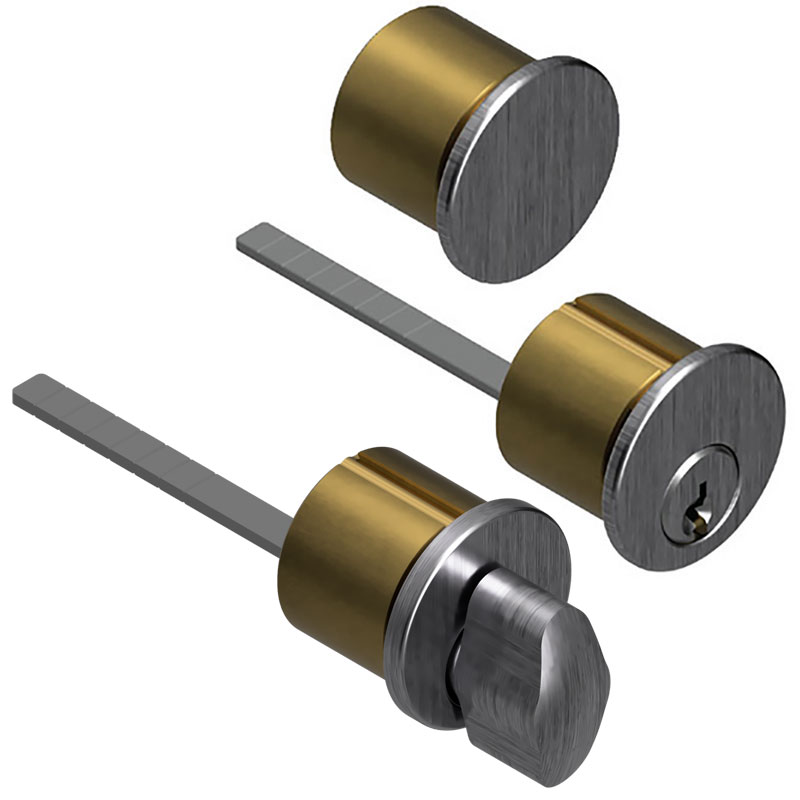

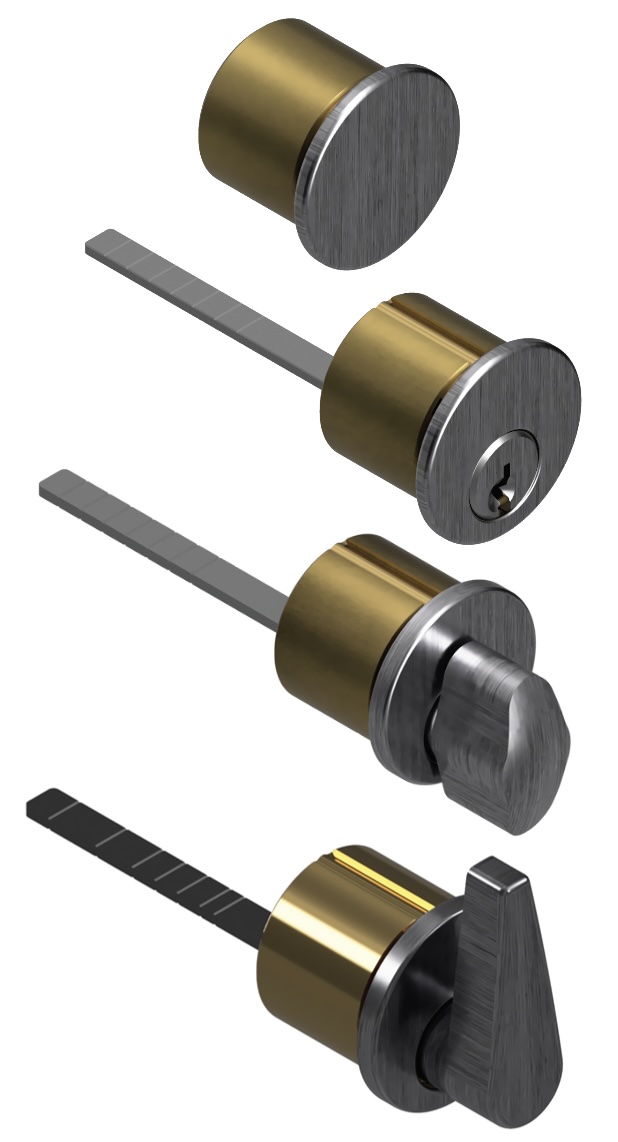

Rim/Rim Dummy Cylinders

How to order Rim/Rim Dummy Cylinders

Model	Keyway	Finish	Keying

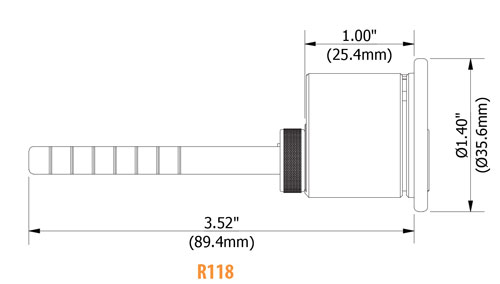

R118	AW (Arrow 1179)	3 (Polished Brass)	A2 (Keyed alike in pairs)
	CB (Corbin 60)	4 (Satin Brass)	KD (Keyed different)
	KW (Kwikset 1176)	10 (Satin Bronze)	OB (Zero bitted)
	SC (Schlage C)	10B (Oil Rubbed Bronze)	Cylinders are drilled 6,
	SE (Segal 9)	15 (Satin Nickel)	pinned 5.
	SX (Schlage C~K)	19 (Black)
	WR (Weiser E)	26 (Polished Chrome)
	YA (Yale 8)	26D (Satin Chrome)
	CL4 (Corbin L4)	32D (Stainless Steel)	A2-6 (Keyed alike in pairs)
	RD1 (Russwin D1)		KD-6 (Keyed different)
	SA (Sargent LA)		OB-6 (Zero bitted)
	SAX (Sargent LA~LC)		Cylinders are drilled 6,
	SLB (Sargent LB)		pinned 6.
	RA (Sargent RA)
	SCE (Schlage E)
	SCF (Schlage F)
	YGA (Yale GA)
	A62 (Assa A62)**		NK-6
	AST (Assa Twin 6000)**		Cylinders are sub-assembled
	ASV (Assa V10)**		with follower, no keys.
	G23 (Schlage C123)**
	G45 (Schlage C145)**

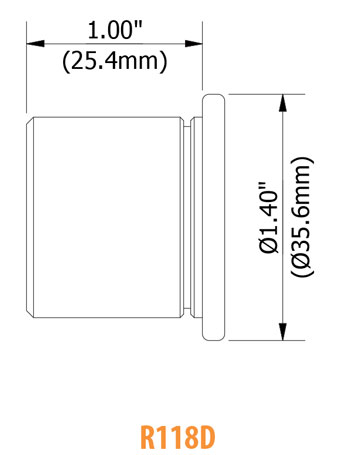

R118D	N/A		N/A

**Cylinder with A62/AST/ASV/G23/G45 keyways come with no keys
