| Part Number | Description |
|---|---|
| KIT-PART01 | Mortise cylinder cam kit |
| KIT-PART02 | IC mortise housing cam kit |
| KIT-PART03A | Rim cylinder parts kit |

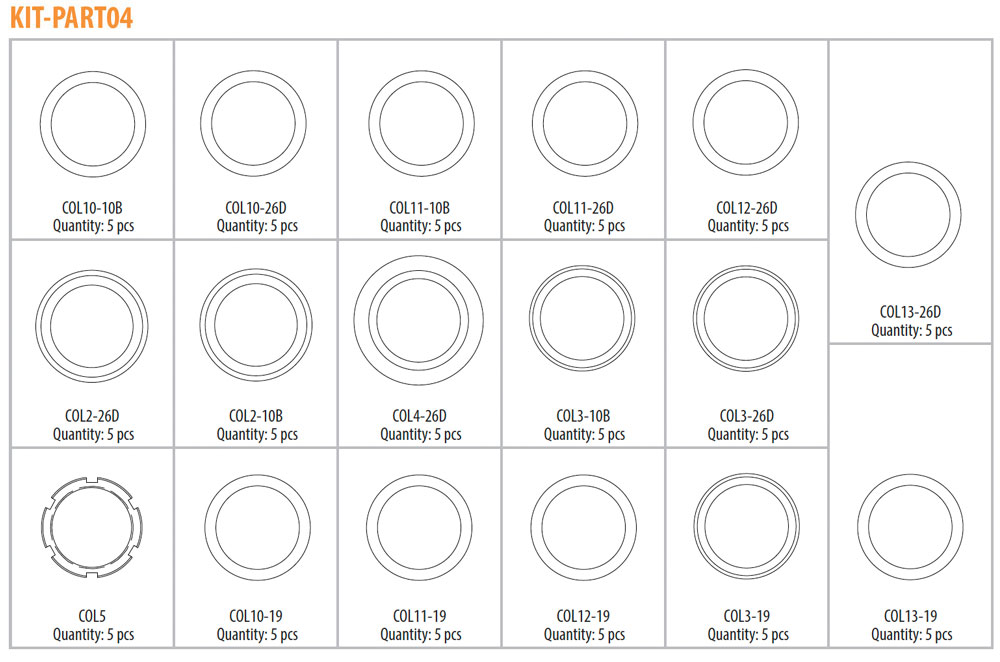

| KIT-PART04A | Collars kit |
How to order Parts and Accessories
Knob/Lever Cylinder Tailpieces
| Part Number | Description | Fits |
|---|---|---|
| TLP-WA | Tailpiece washer, 10 pack | K001 |
| TLP-01-10 | Knob/Lever fixed tailpiece, 1.13" length, 10 pack | K003 |
| TLP-02-10 | Knob/Lever fixed tailpiece, 0.91" length, 10 pack | |
| TLP-03-10 | Knob/Lever fixed tailpiece, 0.68" length, 10 pack | |
| TLP-08-10 | Knob/Lever fixed tailpiece, 0.98" length, 10 pack | |
| TLP-05-10 | Deadbolt single tailpiece, 10 pack | |
| TLP-06-10 | Deadbolt double tailpiece, 10 pack | |
| TLP-04-10 | Rim cylinder break-off tailpiece, 10 pack | R118 |
| TLP-07-10 | IC Rim housing break-off tailpiece, 10 pack | ICR |
| TLP-09-10 | IC Rim housing break-off tailpiece, 10 pack | ICSR |
Replacement Parts
| Part Number | Description | Fits |
|---|---|---|
| CAP-60-10 | Retaining cap, 6mm, 10 pack | K001 |
| CAP-70-10 | Retaining cap, 7mm, 10 pack | K003 |
| SPR-06-10 | Retaining cap pin spring, 10 pack | LFIC |
| RIM | ||
| RPIN-01-10 | Retaining cap pin, 10 pack | K001 K003 RIM |
| RPIN-02-10 | Retaining cap pin, 10 pack | LFIC |
| IC-SP1-10 | Spacer, allows 6 pin core in 7 pin housing, 10 pack | ICM7 ICT7 ICR |
| DRV-RT-10 | Padlock key retaining driver, 10 pack | P175 |
| KIT-LUG26D | Padlock retainer lug and driver for knob/lever cylinders | P200 |
| SPR-05-10 | Cylinder spring washer, 10 pack | All mortise cylinders All mortise t-turn cylinders All mortise dummy cylinders All IC mortise housings |
| MPT-01-10 | Rim cylinder mounting plate, 10 pack | All rim cylinders, All rim dummy cylinders All IC rim housings |
Screws
| Part Number | Description | Fits |
|---|---|---|
| SCR1-10 | Mortise cam screws, 10 pack | CAM1 CAM4 |
| SCR2-10 | Rim cylinder mounting screws, 10 pack | |
| SCR3-10 | IC mortise housing cam screws, 10 pack | CAM2 |
| SCR4-10 | IC mortise housing security screws, 10 pack | ICM ICT |
| SCR5-10 | ICS/padlock cylinder screws, 10 pack | CAM3 P175 P200 |
| SCR13-10 | Extra length mortise cylinder cam screws (short), 10 pack | |
| SCR14-10 | Extra length mortise cylinder cam screws (medium), 10 pack | |
| SCR15-10 | Extra length mortise cylinder cam screws (long), 10 pack |
Conversion Kits
| KIT-CCXR | Conversion kit for CCM |
| KIT-MCXR | Conversion kit for MCM |

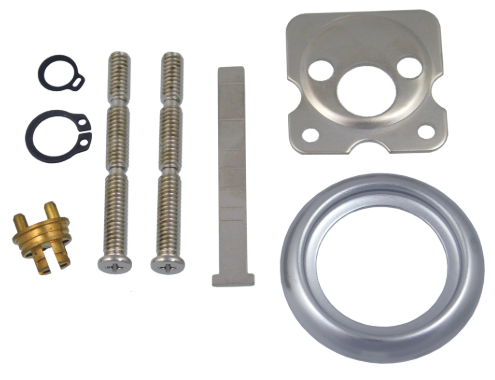

| KIT-SCXR | Conversion kit for SCM |
| KIT-YCXR | Conversion kit for YCM |
| KIT-K001YA | Yale conversion kit |

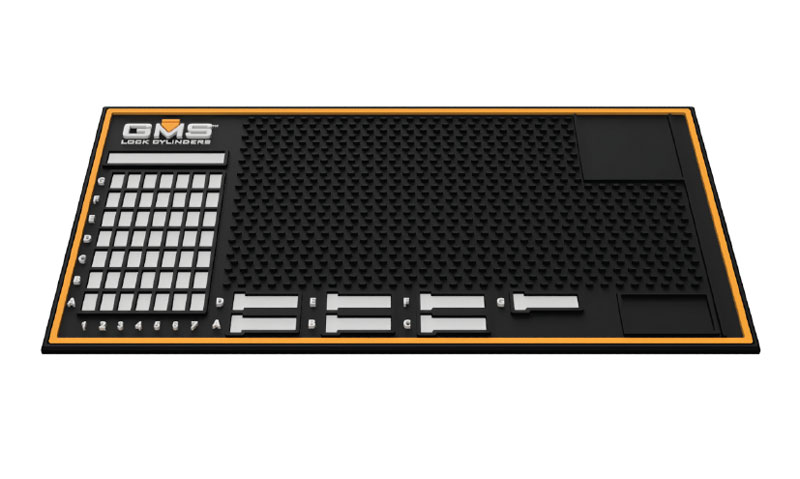

Pinning Mats
- Anti-slip provides ideal workspace for pinning
- Designed with cavities to hold pins, springs and cylinders
- High-quality rubber construction
| Part Number | Description |
|---|---|

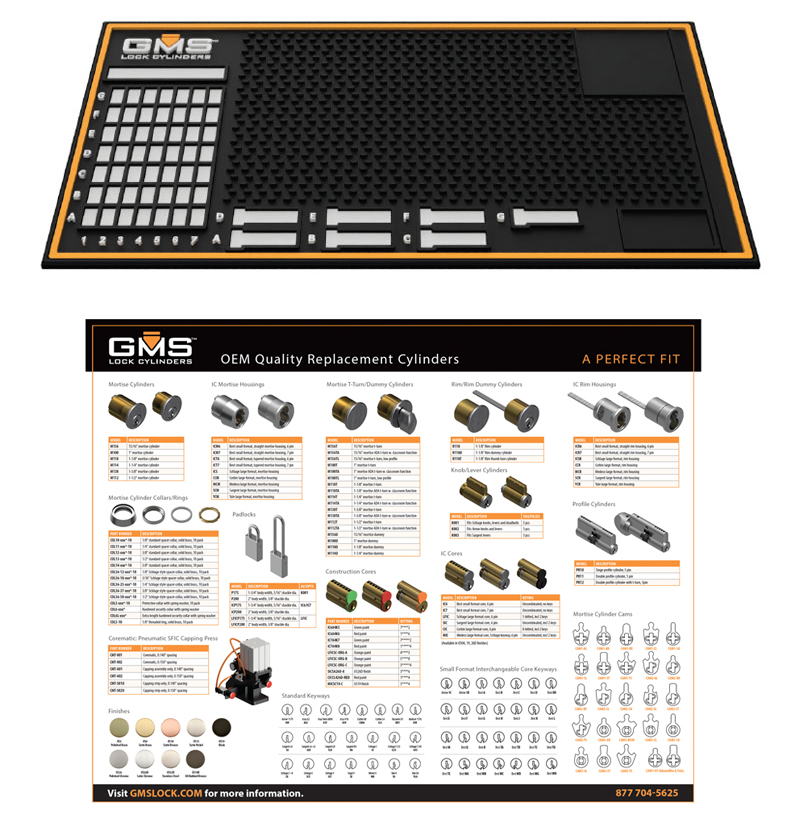

| KIT-PINMAT | GMS pinning mat, 21" x 11" |
| KIT-MAT | GMS Counter mat |

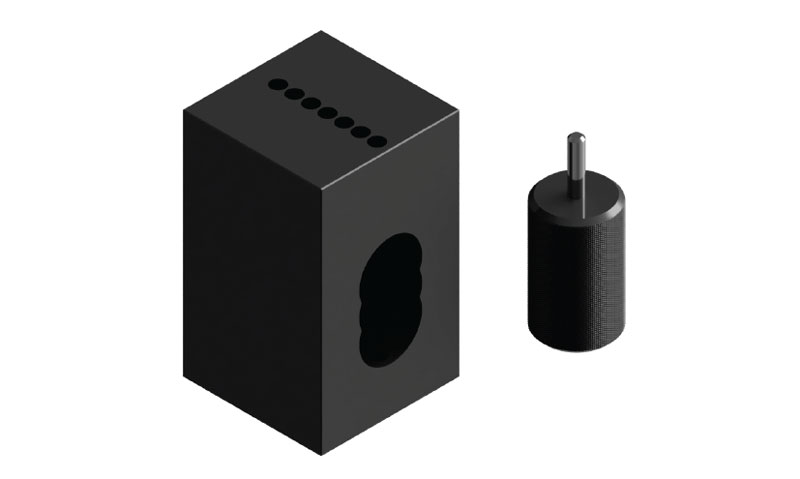

Capping Blocks
- Precision CNC machined
- Hardened for durability
- Compatible with SFIC format
| Part Number | Description |
|---|---|
| CB-02 | Capping block with punch for Best IC core |
| CB-PUNCH-01 | Punch only for CB-02 |
