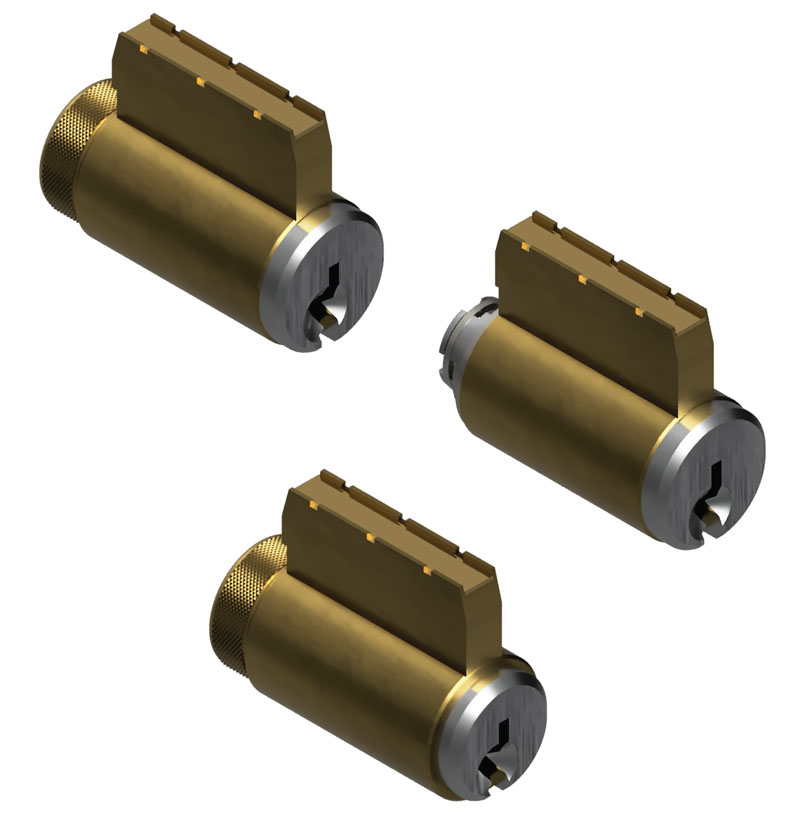

- Solid brass construction
- Exact OEM pinning specifications
- Fits most knob and lever locksets
- Multiple tailpieces included
- 22 Keyways
- 3 Finishes, (04, 19*, 26D)
| Model | Description | Tailpieces |
|---|---|---|
| K001 | Fits Schlage knobs, levers, and deadbolts, 5 pin drilled 6 | 5 pcs |
| K001-6 | Fits Schlage knobs, levers, and deadbolts, 6pin | 5 pcs |
| K002 | Fits Arrow knobs and levers, 5 pin drilled 6 | 3 pcs |
| K002-6 | Fits Arrow knobs and levers, 6 pin | 3 pcs |

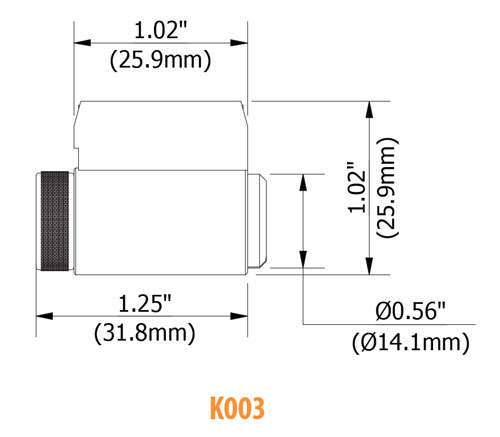

| K003 | Fits Sargent levers, 5 pin drilled 6 | 3 pcs |
| K003-6 | Fits Sargent levers, 6 pin | 3 pcs |
*Available in Schlage keyways
**Cylinder with A62/AST/ASV/G23/G45 keyways come with no keys
Master keying available; contact customer service for details
| Model | Description |
|---|---|
| UK-CON | Construction drilled plug. Available in K001SC26D only. Cylinders will be loaded top pins/springs with follower and loose plug in box. Incl 2 uncut keys and 6 loose ball bearings. |
How to order Knob/Lever Cylinders
| Model | Keyway | Finish | Keying |
|---|---|---|---|
| K001 | AW (Arrow 1179) | 4 (Satin Brass) | A2 (Keyed alike in pairs) |
| CB (Corbin 60) | 26D (Satin Chrome) | KD (Keyed different) | |
| KW (Kwikset 1176) | 19 Black) Only for K001 | OB (Zero bitted) | |
| SC (Schlage C) | SC, SCE, SCF, SX, G23, and | Cylinders are drilled 6, | |
| SE (Segal 9) | G45 keyways only | pinned 5. | |
| SX (Schlage C~K) | |||
| WR (Weiser E) | |||
| YA (Yale 8) | |||
| CL4 (Corbin L4) | A2-6 (Keyed alike in pairs) | ||
| RD1 (Russwin D1) | KD-6 (Keyed different) | ||
| SA (Sargent LA) | OB-6 (Zero bitted) | ||
| SAX (Sargent LA~LC) | Cylinders are drilled 6, | ||
| SLB (Sargent LB) | pinned 6. | ||
| RA (Sargent RA) | |||
| SCE (Schlage E) | |||
| SCF (Schlage F) | |||
| YGA (Yale GA) | |||
| A62 (Assa A62)** | NK-6 | ||
| AST (Assa Twin 6000)** | Cylinders are sub-assembled | ||
| ASV (Assa V10)** | with follower, no keys. | ||
| G23 (Schlage C123)** | |||
| G45 (Schlage C145)** | |||
| K002 | AW (Arrow 1179) | A2 (Keyed alike in pairs) | |
| SC (Schlage C) | KD (Keyed different) | ||
| K003 | SA (Sargent LA) | OB (Zero bitted) | |
| SC (Schlage C) |
*Available in Schlage keyways
**Cylinder with A62/AST/ASV/G23/G45 keyways come with no keys
| EXAMPLES | K001SC26DARA2 |
| K001G2326DATNK-6 | |
| K001AW4STA2 |
Yale Conversion Kit
| Part Number | Part Description |
|---|---|
| KIT-K001YA | Converts K001* to fit Yale levers |
*K001 cylinder not included
