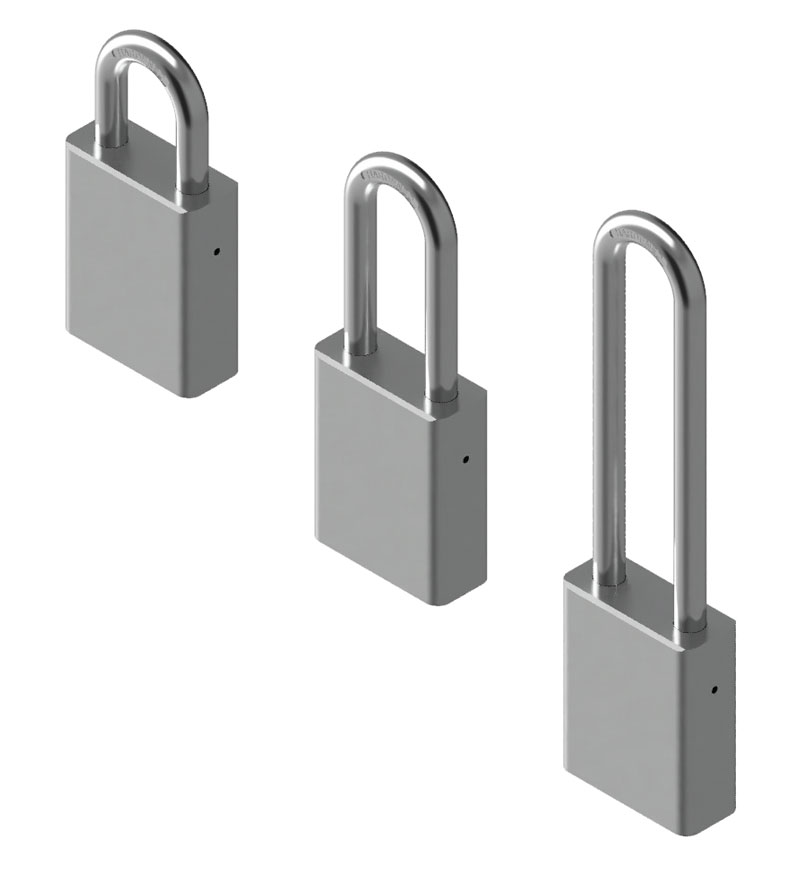

Padlocks

Solid brass body construction
Hardened shackles
Double ball locking
3 shackle lengths available

Model	Description	Accepts
P175	1-3/4" body width, 5/16" shackle dia.	K001
P200	2" body width, 3/8" shackle dia.
ICP175	1-3/4" body width, 5/16" shackle dia.	IC6/IC7
ICP200	2" body width, 3/8" shackle dia.
LFICP175	1-3/4" body width, 5/16" shackle dia.	LFIC

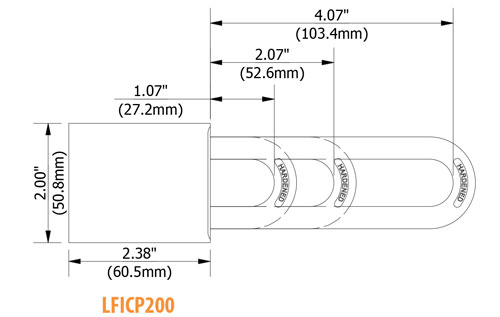

LFICP200	2" body width, 3/8" shackle dia.

Padlocks

icp175 icp200 p175 p200 LFIC175 lficp200

How to order Padlocks

Model	Shackle Clearance	Keyway	Keying
P175	1 (1")	SC (Schlage C)	OB (Zero bitted)
P200	2 (2")	SX (Schlage C~K)	Cylinders are drilled 6,
	4 (4")	KW (Kwikset 1176)	pinned 5.
		WR (Weiser E)
ICP175		N/A	N/A
ICP200
LFICP175
LFICP200

EXAMPLES	P1751SCOB
	ICP2002
