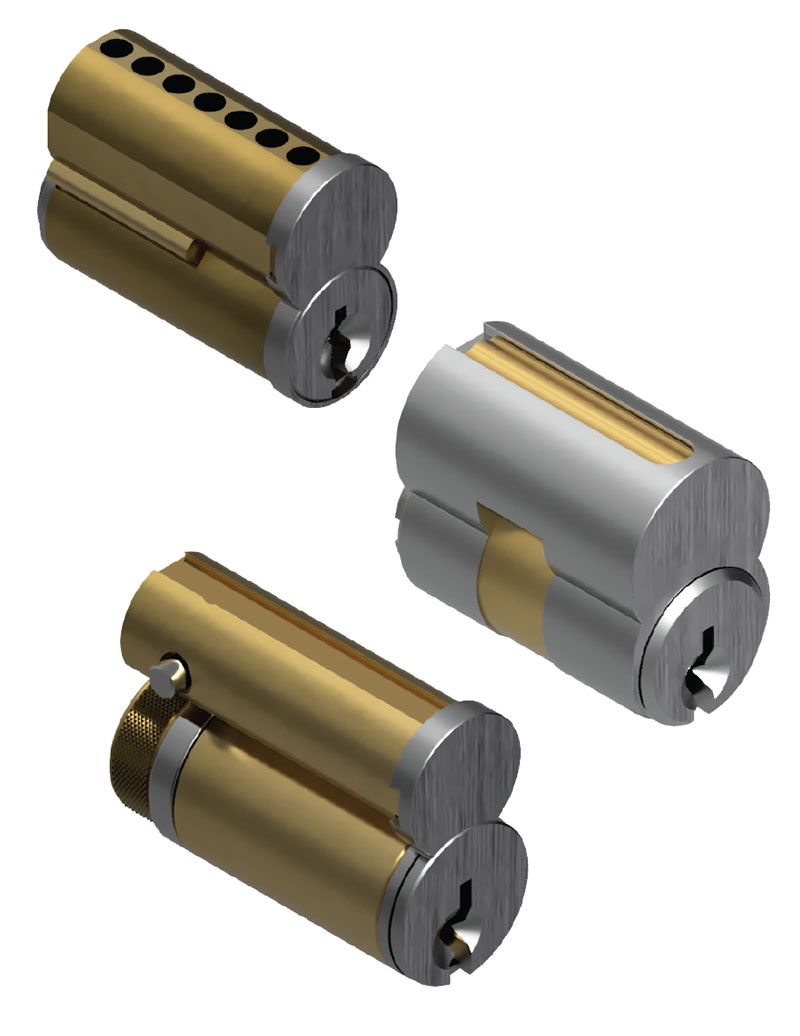

IC Cores

Solid brass construction
Exact OEM pinning specifications
Precision CNC machined
5 popular industry formats

MODEL	DESCRIPTION	KEYING
IC6	Best SFIC, 6 pin	Uncombinated, no keys
IC7	Best SFIC, 7 pin	Uncombinated, no keys
ICDD	Best SFIC, 6/7 pin	Uncombinated, no keys
IC7T	Best SFIC, 7 pin, T-series keyway	Uncombinated, no keys
IC7W	Best SFIC, 7 pin, W-series keyway	Uncombinated, no keys
LFIC	Schlage LFIC, 6 pin	1-bitted, incl 2 keys (except G23 & G45)

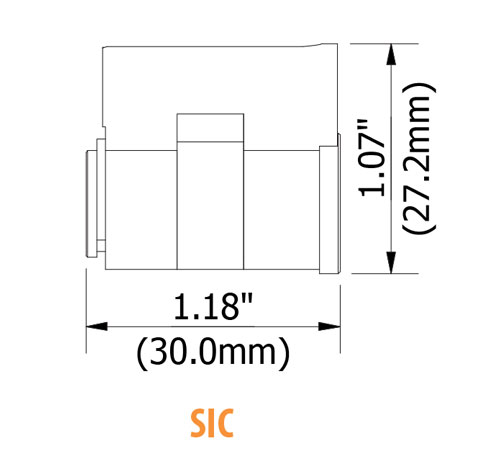

SIC	Sargent LFIC, 6 pin	Uncombinated, incl 2 keys

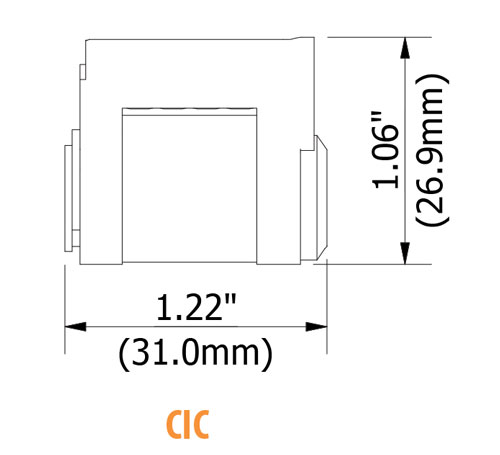

CIC	Corbin LFIC, 6 pin	1-bitted, incl 2 keys
MICSC26D	Medeco LFIC, Schlage C keyway, 6 pin*	Uncombinated, incl 2 keys

*Use with KIT-PIN03 pinning kit.

Master keying available; contact customer service for details.

IC Cores

CIC IC7 lfic IC6 MIC6 SIC6

How to order IC Cores

MODEL	KEYWAY		FINISH	KEYING
IC6	A (Best A)	K (Best K)	4 (Satin Brass)	NA
IC7	B (Best B)	L (Best L)	19 (Black)
	C (Best C)	M (Best M)	26D (Satin Chrome)
	D (Best D)	Q (Best Q)	10B (Oil Rubbed Bronze)
	E (Best E)	R (Best R)
	F (Best F)	DD (Best DD)
	G (Best G)	1C (Arrow 1C)
	H (Best H)	1D (Arrow 1D)
	J (Best J)
IC7	TA (Best TA)	WA (Best WA)
	TB (Best TB)	WB (Best WB)
	TC (Best TC)	WC (Best WC)
	TD (Best TD)	WD (Best WD)
	TE (Best TE)	WG (Best WG)
		WH (Best WH)
LFIC	SC (Schlage C)			B1 (1-bitted)
	SCE (Schlage E)
	SCF (Schlage F)
	SX (Schlage C~K)
	G23 (Schlage C123)			BN (1-bitted, no keys)
	G45 (Schlage C145)
SIC	SA (Sargent LA)		4 (Satin Brass)	Uncombined (2 keys)
	SAX (Sargent LA~LC)		26D (Satin Chrome)
	SLB (Sargent LB)
	RA (Sargent RA)
CIC	CL4 (Corbin L4)			B1 (1-bitted, 2 keys)
MIC	SC (Schlage C)		26D (Satin Chrome)	Uncombined (2 keys)

EXAMPLES	IC7A26D
	LFICSCF4B1
	SICSA26D
	CICCLR4
	MICSC26D

MIC Pinning Kit

Part Number	Description
KIT-PIN03	MIC pinning kit
